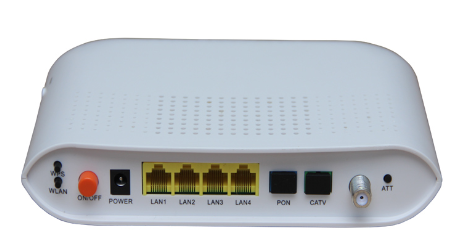

4FE+CATV ONU ----FY- E4F1A02
one EPON port ,one CATV port ,4* 10/100M self-adaptation VLAN ports
FY- E4F1A02 series is a user terminal product designed by flypon ,which has CATV function,meet the standard of 802.3ah,has good compatibility,can compatible well with mainstream vendor’s OLT equipment.Providing 4*10/100M broadband access,can achieve a powerful, manageable two layers Ethernet function.
Product Feature:
1.Support 4094 VLAN.
2.MAC address:2K, support MAC address limits.
3.Support port speed limit , storm suppression.
4.Support IGMP Snooping, CTC controllable multicast.
5.Support port isolation.
6.Support Dysing Gasp.
7.Support STP.
8.Support 8 priority queue scheduling algorithms and SP scheduling algorithms.
9.Support OAM,CLI,WEB configuration management.
10.Support Telnet ,OLT remote and WEB software upgrade .
Product specification
Hardware characteristic |
Port | 1 optical port (SC/UPC fiber optical interface),1310/1490nm EPON signal |
1 CATV optical port(SC/APC fiber optical interface),1 coaxial cable RF output port. |
4*10/100Base-T self-adaption LAN port |
Transmission rate | Uplink and downlink 1.25Gbps |
LED indicate light | indicates ONU power working state |
PON,LOS,RUN,LAN1-LAN4,CATV indicates the state of ONU registration,ONU running, the state of link and active of LAN port, CATV light input |
Reset | Provide hardware reset button,long press to restore factory settings |
Power supply | 12V/1A DC power input |
Power consumption | < 8W |
Working environment temperature | -10℃～45℃ |
Working environment humidity | 5%~95%（non-condensing） |
Storage environment temperature | -20℃～70℃ |
Storage environment humidity | 75%（maximum） |
Size | 200mm×150mm×36mm |
Weight | <1Kg |
Service characteristic |
Ethernet port | Support port MDI/MDIX self negotiation |
Support 802.3x flow control |
support each port uplink and downlink speed limit |
Support storm suppression |
Support port MAC restrictions |
Support port isolation |
Support STP |
Support port mapping |
VLAN | Support 802.1Q VLAN |
Support SVLAN |
Support 4k VLAN |
Support CTC VLAN |
multicast | Support IGMP Snooping |
Support 64*4 group multicast |
Support CTC controlled Snooping |
QoS | support source MAC,destination MAC、VLAN priority,VLAN ID,Ethernet frame type,source IP,the destination of IP stream |
support 802.1p、DSCP and TOS |
Support SP priority scheduling algorithm |
PON port | Compatible CTC |
compatible 802.3ah |
Support 8 priority queues and SP scheduling algorithms |
Support Dysing Gasp |
Management maintenance | Support CLI |
Support Telnet |
Support WEB management |
Support Firmware remote and local upgrade |
MAC address | Support 2K MAC address table |
Supports static MAC addresses |
Support MAC address blacklist |
MAC aging time can be configured |
Order information
model | description |
FY- E4F1A02 | 4FE+CATV ONU |
