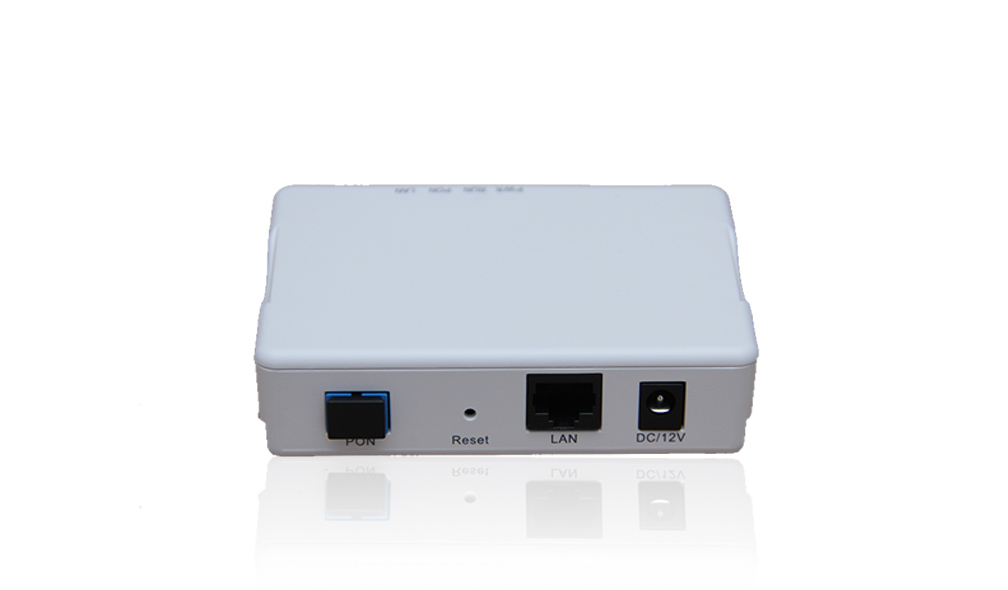

1GE GPON ONU --FY-1G02G
ONE uplink GPON port ,one 10/100/1000M LAN port
Product Overview
FY-1G02G series is designed by NATYWISH,which is a gigabit single port GPON ONU,in order to meet the needs of telecom operators, FTTO (Office),FTTB (Building), FTTD (Desk) broadband speed increase, SOHO broadband access, it adopts mature, stable and cost-effective gigabit GPON technology.High reliability, easy to manage,flexible configuration and good quality of service (QoS) guarantee. It has the function of NAT and firewall and so on.The technical performance of the product meets the requirements of ITU-T G.984 standard and the technical requirement of China Telecom GPON .
Product Feature:
1.Plug and play, auto discovery, configuration and upgrade.
2.Support OAM remote configuration management function.
3.Optical port has the function of optical power detection,optical transmission cut off etc.
4.Provide fail alarm interrupt signal.
5.It can interflow well with Broadcom, PMC,Cortina and other OLT equipment .
Technical Parameter
Model | FY-1G02G |
Port |
1 PON port , 1 LAN port.
|
PON port data rate |
Uplink port 1.25Gbps, downlink port 2.5Gbps. Uplink and downlink unsymmetrical, SC, single mode,single fiber.
|
LAN Data port | 1*10/100/1000Mbps self-adaption ethernet RJ45 port,full duplex/half duplex. |
Wavelength
| Wavelength:Tx 1310nmRx1490nm |
Optical connector
| SC/PC |
Indicators
| 4 indicator lights : for LOS, PON, POWER, LAN |
Size | 268×213mm×34mm |
Weight | <1.4kg |
Input voltage | DC12V /2A |
Max power | <13W |
MAC address | 1K |
Buffer | 1Mbit |
Flow control | Support ITU-T G.984 standard flow control（full duplex） Back pressure flow control (half duplex) |
Working temperature | 0℃～50℃ |
Working humidity | 5% ～ 95% （non condensing） |
Service
Model | FY-1G02G |
GPON | Meet ITU-T G.984 GPON standard Support GEM encapsulation mode Support DBA（Dynamic Bandwidth Assignment） Support 40 T-CONT and 256 GEM Ports Support Class B+ VLAN to GEM Port mapping Support FEC（Forward Error Correction） Flushbonading OAM（Operations，Administration and Maintenance），PLOAM（Physical Layer OAM），OMCI Support downlink 128 AES（Advanced Encryption Standard）encryption. Support fail alarm. |
LAN |
Support Port rate limiting
|
VLAN | Support port-based VLAN and IEEE 802.1Q VLAN Support VID and PVID Support port ＋VLAN ,set the tag property |
Multicast |
Support IGMPv1/v2
|
Broadcast storm suppression | Broadcast messages can be set |
STP | Support IEEE 802.1d/1s/1w |
Port aggregation | Support |
Bandwidth control | Support 64K to100M |
mirror image | Support port mirroring function |
QoS |
Support 4 queues
|
upgrade | Support X modem, TFTP |
Manage | Support GN.Link cluster management and remote upgrade（Client side） Support Telnet remote configuration Support SNMP Support WEB management |
Security | Support administrator password centralized authentication Supports port locking and limits the number of MAC addresses per port Support 802.1x |
Maintain | Support debugging information output Support PING Support system logs Support ITUT984.x OMCI(GPON)
|
Alarm |
Support Dying Gasp Anti-DOS attack |
Throughput |
Upstream >900Mbps
|
Packet lost |
14Hours /Lost 0
|
Data service function
1.Transmission rate:10M/100M/1000M full duplex/half duplex,self-adaption.
2.Support automatic polarity recognition of network port,
3.Support port monitoring、port rate-limiting,port SLA,port configuration.
4. support NAT,firewall,port filtering.
5.Provide 10Base-TX/100Base-TX/1000Base-TX port by double row pin,convenient to interconnect well with all kinds of embedded equipment.

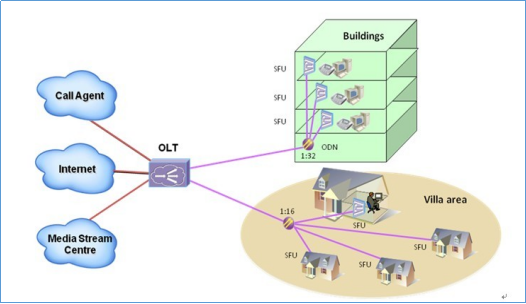

Application Solution
Order Information
Model
|
Description |
FY-1G02G
|
1GE GPON ONU |
