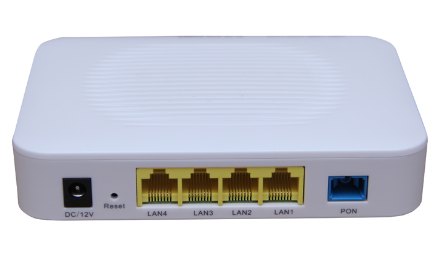

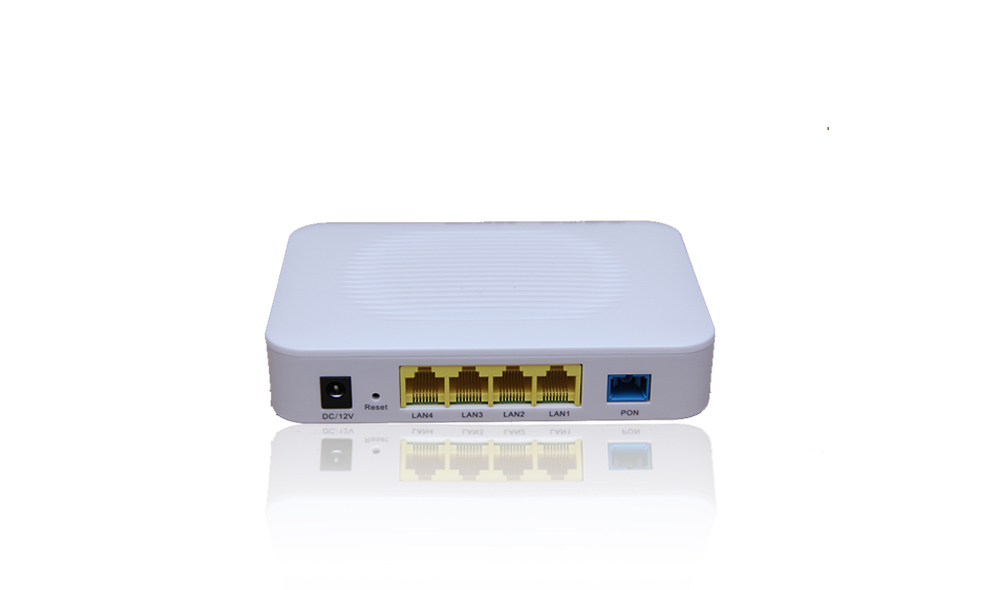

1GE+3FE ONU EPON --FY-G1G3F02
ONE uplink GPON port ,1GE +3FE LAN ports
Product Overview:
FY-G1G3F02 ONU series is a home network product designs by flypon,which is a terminal device, in order to meet the needs of telecom operator,SOHO broadband access,broadband speed increase,FTTH/FTTO, it adopts mature, stable and cost-effective gigabit GPON technology.2/3 layer ethernet switch technology,High reliability,easy to manage,flexible configuration and good quality of service (QoS) guarantee.
The technical performance of the product meets the requirements of ITU-T G.984 and the technical requirement of China Telecom GPON .
Product Feature:
1.Plug and play, auto discovery, configuration and upgrade.
2.Support OAM remote configuration management function.
3.Optical port has the function of optical power detection,optical transmission
cut off etc.
4.Rich VLAN and multicast functions.
5.It can interflow well with Broadcom, PMC,Cortina and other OLT equipment .
6.Support route,NAT and firewall functions.
Technical Parameter
Model | Parameter | Specification |
Port | PON port | 1 GPON ONU port, Meet 1000BASE-PX20 standard, Uplink and downlink unsymmetrical, uplink port 1.25Gbps, downlink port 2.5Gbps. SC,single mode ,single fiber, Splitting ratio：1：64, Distance：20KM. |
LAN port | 1*10/100/1000M+3*10/100M LAN ports (self adaption), Full duplex/half duplex, support cross connect directly, Distance :100 meters. | |
Power supply | DC12V power supply, External :12V 0.5A AC/DC adapter. | |
Performance Specification | PON port | Wavelength ：Tx1310nm Rx1490nm, Transmit optical power：-1～4dBm, Rx sensitivity：-27dBm, Maximum optical power：-3dBm. |
Data transmission performance | PON port : downlink 980Mbps,uplink 950Mbps Ethernet :100Mbps Packet loss:<1*10E-12 Transmission delay:<1.5ms | |
Business | 2 layers line speed switching. Support VLAN TAG/UNTAG,VLAN switch. Support port speed limit. Support business priority. Support broadcast packet suppression. Support loop detection. | |
Device management | Management | Through the OAM protocol,center OLT device unified manage,support SNMP,TELNET,local management. |
Management function | Status monitoring, configuration , alarm and log management . | |
Status indication | Indicated LED light | PWR: power supply . OPTIN: optical signal . LINK：registration . LAN1~2: network port working state . ETH1~2:network port working state . |
Physical Characteristics | Shell | Plastic. |
Power supply and consumption | External DC 12V. Power consumption:<4W. | |
Size and weight | Device size：160mm(L) x 120mm(W) x 32.5mm (H). Device weight：0.3kg. | |
Environment | Working temperature：0～50℃ Storage temperature：-40～85℃ Operating humidity：10%～90% non condensing Storage humidity: 5%～95% non condensing |
Data Service Function
1.Full line speed ,non blocking switching.
2.MAC:1k.
3.Support 64 full VLAN ID.
4.Support VLAN QinQ, pass through,tag,translation,trunk etc.
5.Support port monitoring, port mirroring, port speed limit, port SLA etc.
6.Support auto MDIX.
7.Support IEEE802.1p,QoS.
8.Support IPv4 IGMP snooping and IPv6 MLD snooping.
9.Supports bridging connection , routing, bridging connection/ routing mixed mode.
10.Support NAT, virtual server etc.
11.Support firewall function.
Application solution
Order Information
Model |
Description |
NTW-E17400SL |
1GE+3FE ONU |
