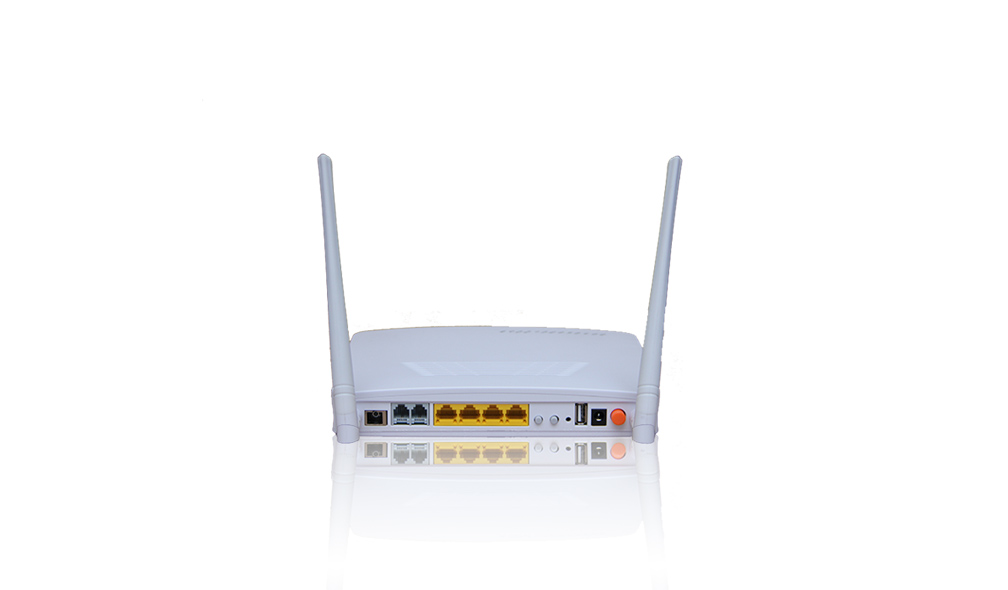

4GE+2 voice ports +WIFI GPON ONU
----FY-G4G2V1W
1 GPON ports,4 *1000M LAN ports, 2 voice ports +WIFI ONU GPON
Product Overview
FY-G4G2V1W GPON ONU series is a broadband terminal device designed by flypon,in order to meet the needs of telecom operator,SOHO broadband access,broadband speed increase,FTTH/FTTO,it adopts mature,stable and cost-effective gigabit EPON technology,and integrates Gigabit Ethernet switching, WDM and HFC optical receiving technology,with the feature of high reliable ,easy to manage and QoS guarantee.It meets IEEE802.3ah standard and China Telecom EPON equipment technical requirements (V2.1)etc.
Technical Specification
1.Power adapter input：220V AC，50HZ.
2.System power supply: See the nameplate on the device.
3.Ambient temperature：-5 ~ +55℃(V2801W 0 ~ +40℃ )Ambient humidity：10% ~ 4.95%(non-condensing).
5.Store temperature：-30 ~ +60℃Store humidity：10% ~ 95%(non-condensing).
Parameter Name |
Hardware Parameter |
GPON | |
Chipset |
BCM68380 Series. |
PON Port |
SC, single-mode,single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps. |
Wavelength |
Tx 1310nm, Rx 1490nm. |
Sensitivity |
< -27dBm (CLASS B+). |
Optical Type |
SC/PC. |
Interface Type |
4*10/100/1000Mbps, Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector, 2 ports, RJ11 connector. |
Wireless |
Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R one internal antenna and one external antenna. |
Indicators | 13, For POWER,PON ,LOS,WAN,WiFi, Phone, Lan, Pair, USB. |
Dimension | 185mm×135mm×45mm. |
Power | DC12V,1A/1.5A. |
Power Consumption | ≤10W. |
Weight (No Power Adapter) | 340g. |
Size | 195mm x188mm x51mm. |
Parameter Name |
Software Parameter |
GPON | |
LAN |
Support Port rate limiting Support Loop detection |
VLAN |
Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode Support VLAN translation mode Support VLAN QinQ mode |
Multicast |
Support IGMPv1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping |
QoS |
Support 4 queues Support SP and WRR Support 802.1P Support DSCP |
L3 |
Support IPv4、IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route Support NAT Support Bridge, Route ,Route and Bridge mixed mode Support DMZ Support DNS Support ALG Support UPnP Support Virtual Server |
DHCP |
Support DHCP Server |
VOIP |
Support SIP protocol， Support Voice coding: ITU-T G.711/G.723/G.726/G.729, auto-negotiate with call agent， Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length， Support high/low speed fax/Modem, bypass fax, and T38 fax， Support InBand / RFC2833/SIP INFO, MD5 authentication, call forward, call waiting, hot-line call, and all kinds of value-added voice service. Multi-party conferencing ， Support Line testing according to GR-909. |
Wireless |
Support 802.11b/g/n and Mixed mode, Support 4 SSID , Support No-auth, WEP, WPA-PSK and WPA2-PSK function with AES,TKIP encryption. |
Performance |
Data loss:<1*10E-12. Call loss:<0.01%. |
Security | Support Firewall Support Mac filter Support ACL Support URL filter |
Management | Support OMCI(ITU-T G.984.x). |
Support WEB. Support TR069. Support TELNET. Support CLI. |
Order information
Model | Description |
FY-G4G2V1W |
4GE+2 voice ports +WIFI GPON ONU
|
