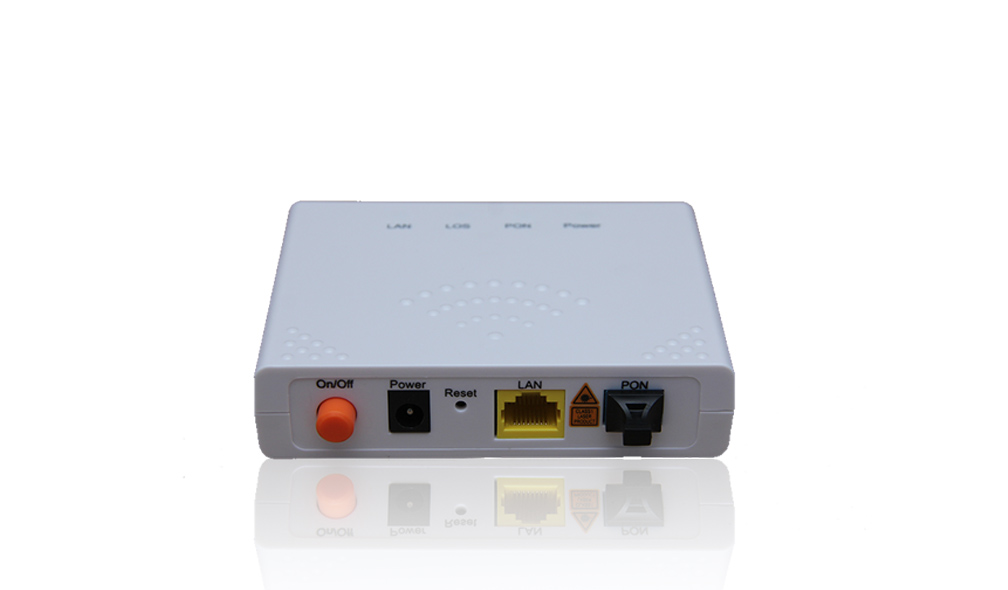

1GE EPON ONU -FY-1G01E
ONE uplink EPON port ,one downlink 10/100/1000M LAN port
Product Overview
FY-1G01E series is design by FLYPON ,which is a gigabit single port EPON ONU,in order to meet the needs of telecom operators, FTTO (Office),FTTB(Building), FTTD(Desk) broadband speed increase,SOHO broadband access,it adopts mature,stable and cost-effective gigabit EPON technology.High reliability,easy to manage,flexible configuration and good quality of service (QoS) guarantee.It has the function of NAT and firewall and so on.The technical performance of the product meets the requirements of IEEE802.3ah and the technical requirement of China Telecom EPON .
Product Feature:
1.Plug and play, auto discovery, configuration and upgrade.
2.Support OAM remote configuration management function.
3.Optical port has the function of optical power detection,optical transmission cut off etc.
4.Provide fail alarm interrupt signal.
5.It can interflow well with Broadcom, PMC,Cortina and other OLT equipment .
Technical Parameter
Specification | Description |
Uplink port | 1 EPON port,SC,single mode,single fiber,1.25Gbps symmetrical. |
Wavelength | Wavelength:Tx 1310nmRx1490nm. |
Optical connector | SC |
Downlink data port | 1*10/100/1000Mbps self-adaption ethernet LAN port,full duplex/half duplex. |
Indicator light | Use to indicate the situation of power supply,PON port and network port |
Power supply | ＋12V，external AC-DC power adapter. |
Power | ≤2.5W |
Working environment | Working temperature：-5～+55℃，working humidity：10～90%（non-condensing） |
Storage environment | Storage temperature：-30～+60℃，storage humidity：10～90%（non-condensing） |
Size | 120mm×78mm×28mm |
Weight | 0.25Kg |
Data service function
1. Transmission rate:10M/100M/1000M full duplex/half duplex,self-adaption.
2.Support automatic polarity recognition of network port,
3.Support port monitoring、port rate-limiting,port SLA,port configuration.
4. support NAT,firewall,port filtering.
5.Provide 10Base-TX/100Base-TX/1000Base-TX port by double row pin,convenient to interconnect well with all kinds of embedded equipment.

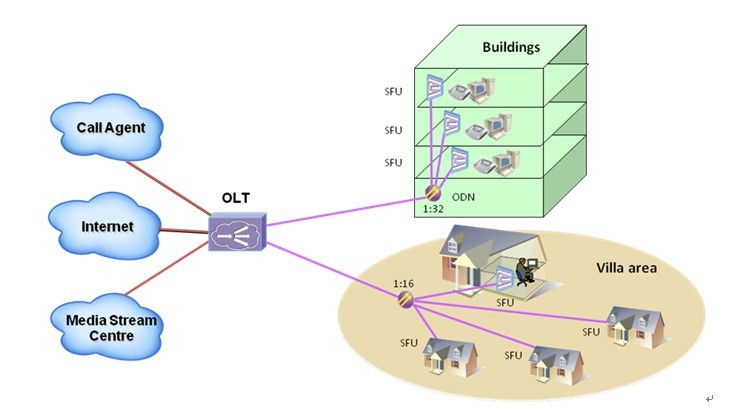

Application solution
Order information
Model |
Description |
FY-1G01E |
1 GE ONU EPON |
