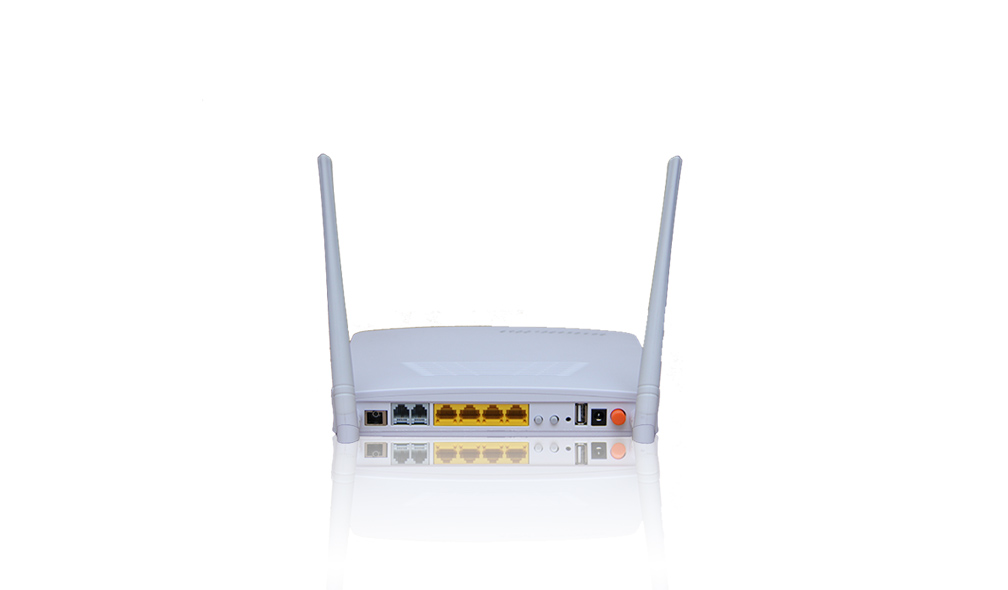

4GE+2 PORTS +WIFI GPON ONU
1 GPON ports,4 *1000M LAN ports, 2 voice ports +WIFI ONU
Product Overview
FY-E4G2V1W Series 4GE+2 PORTS +WIFI GPON ONU series is a broadband terminal device designed by Flypon ,in order to meet the needs of telecom operator,SOHO broadband access,broadband speed increase,FTTH/FTTO,it adopts mature,stable and cost-effective gigabit EPON technology,and integrates Gigabit Ethernet switching, WDM and HFC optical receiving technology,with the feature of high reliable ,easy to manage and QoS guarantee.It meets IEEE802.3ah standard .
Technical Specification
1.Power adapter input：220V AC，50HZ.
2.System power supply: See the nameplate on the device.
3.Ambient temperature：-5 ~ +55℃(V2801W 0 ~ +40℃ )Ambient humidity：
10% ~ 4.95%(non-condensing).
5.Store temperature：-30 ~ +60℃Store humidity：10% ~ 95%(non-condensing).
Parameter Name |
Hardware Parameter |
GPON | |
Chipset |
BCM68380 Series |
PON Port |
SC, single-mode,single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps. |
Wavelength |
Tx 1310nm, Rx 1490nm |
Sensitivity |
< -27dBm (CLASS B+) |
Optical Type |
SC/PC |
Service interface |
4*10/100/1000Mbps LAN ports. 2 voice ports with wifi function
|
Wireless |
Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R one internal antenna and one external antenna. |
Indicators | 13, For POWER,PON ,LOS,WAN,WiFi, Phone, Lan, Pair, USB. |
Dimension | 185mm×135mm×45mm |
Power | DC12V,1A/1.5A |
Power Consumption | ≤10W |
Weight (No Power Adapter) | 340g |
Size | 195mm x188mm x51mm |
Parameter Name |
Software Parameter |
EPON | |
LAN |
Support Port rate limiting Support Loop detection |
VLAN |
Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode Support VLAN translation mode Support VLAN QinQ mode |
Multicast |
Support IGMPv1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping |
QoS |
Support 4 queues Support SP and WRR Support 802.1P Support DSCP |
L3 |
Support IPv4、IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route Support NAT Support Bridge, Route ,Route and Bridge mixed mode Support DMZ Support DNS Support ALG Support UPnP Support Virtual Server |
DHCP |
Support DHCP Server |
VOIP |
Support SIP protocol， Support Voice coding: ITU-T G.711/G.723/G.726/G.729, auto-negotiate with call agent， Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length， Support high/low speed fax/Modem, bypass fax, and T38 fax， Support InBand / RFC2833/SIP INFO, MD5 authentication, call forward, call waiting, hot-line call, and all kinds of value-added voice service. Multi-party conferencing ， Support Line testing according to GR-909. |
Wireless |
Support 802.11b/g/n and Mixed mode, Support 4 SSID , Support No-auth, WEP, WPA-PSK and WPA2-PSK function with AES,TKIP encryption. |
Performance |
Data loss: <1*10E-12. Call loss: <0.01%. |
Security | Support Firewall Support Mac filter Support ACL Support URL filter |
Management | Support OMCI(ITU-T G.984.x). |
Support WEB. Support TR069. Support TELNET. Support CLI. |
Model | description |
FY-E4G2V1W
| 4GE+2 Voice+WIFI GPON ONU |
