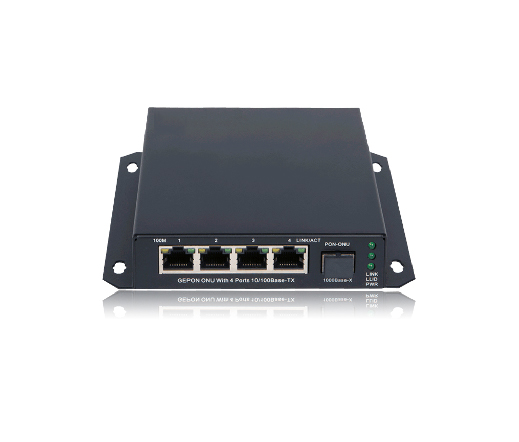

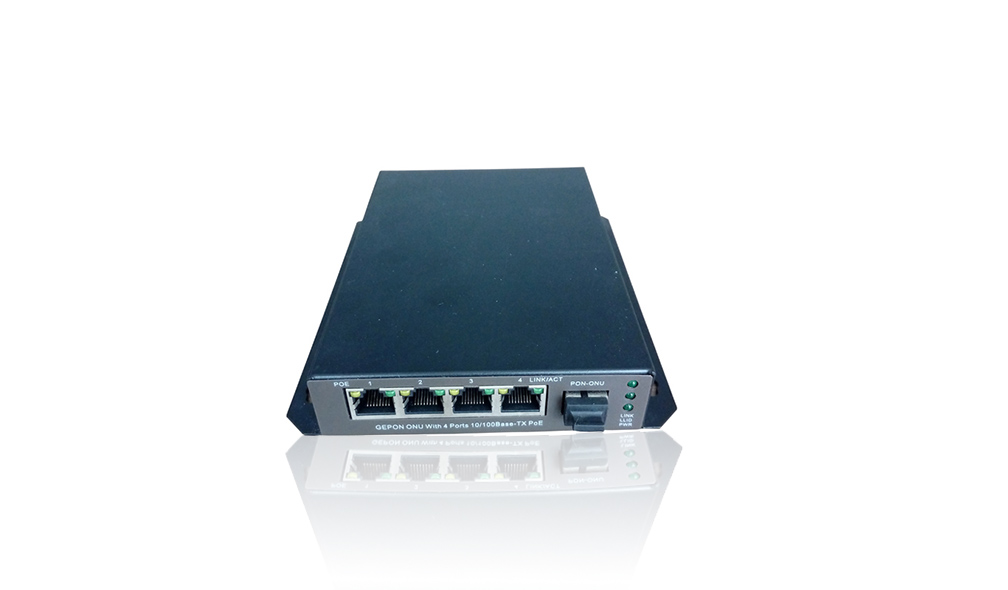

4 4 ports industrial POE ONU ---- FY-E004P
Product Overview
FY-E004PP series is a digital POE ONU, designed by flypon,provides 4*10/100Mbps self-adaptation POE port ,support IEEE802.3af15.4W and IEEE802.3at30W power supply standard.It can automatically identify the electrical equipment and provide power, meet the IEEE802.3af/at standard .For the connected equipment that non electricity,it would automatically stop the power supply.It can be connected to the network camera, IP telephone and wireless AP network equipment and supply power and cooperate well with center OLT.It can achieve remote fault diagnosis and location ,reduce maintenance workload,Iron shell design,applicable to FTTB/FTTH and other application environments.
Product Feature:
1.Meet IEEE802.3/802.3ah standard.
2.Automatic discovery and registration.
3.Support DBA and all kinds of SLA .
4.Support IEEE802.1DRSTP.
5.Support IGMP Snooping V2 multicast.
6.EMI and ESD protection certification.
7.Support VLAN.
8.SNTP client side automatic time synchronization.
9.Rich and powerful OAM with remote management capabilities.
10.Support port speed limit, loop detection and port isolation.
11.Support state detection and automatic fault location.
12.Support power-off alarm.
13.Each PoE power supply port can automatically identify whether or not a power supply is connected to a standard receiving device to power or power it off.
14.Support IEEE802.3af15.4W and IEEE802.3at30W standard.
Technical parameter
Model | FY-E004PP |
Electrical port | 4*10/100M BASE-T RJ45ports (self adaptation). |
PON port
| Uplink and downlink symmetric, 1Gbps transmission rate. |
Optical interface：SC/PC. | |
Network coverage radius: 30km. | |
High sensitivity optical receiver: no less than -26dBm. | |
Optical power：2-7dBm. | |
Security: ONU authentication mechanism. | |
Standard | IEEE 802.3ah. |
（YD/T 1475-2006） | |
IEEE 802.1D, Spanning Tree | |
IEEE 802.1Q, VLAN | |
IEEE 802.1w, RSTP | |
Ethernet – II, Ethernet-SNAP | |
Service quality | Back pressure flow control (half duplex) |
IEEE 802.3x flow control (full duplex) | |
Prevent Head Of Line | |
IEEE p802.1p, CoS | |
4 dispatch queues per port map the 8 priority levels of the 802.1p | |
WR,SP and FIFO queue scheduling algorithm | |
Port speed limit | |
VLAN | Port VLAN |
IEEE802.1Q VLAN relay | |
POE | Power standard：IEEE802.3af15.4W IEEE802.3at30W |
Working mode：Automatic identification of point equipment, automatic power supply, power interruption | |
Network security | IEEE 802.1x, Port access control, support local and remote authentication，EAP finality or pass through. |
CHAP，EAP authentication | |
Limit the maximum number of users per port | |
Port protection | |
Message storm control | |
Configuration management | CLI, Web, SNMP, TELNET management etc. |
Software upgrades can be done by TFTP and FTP | |
Local or server logs syslog . | |
ping, tracerouten etc | |
Size | 170 mm(W) x 98 mm(D) x 28 mm(H) |
Install :plug and play | |
Heat dissipation | Long time to use(24hours)，equipment heating does not cause performance degradation and device deformation damage. |
Environment | Working environment：-40℃～65℃；10%～85% non-condensing |
Storage environment：-40℃～80℃；5%～95% non-condensing | |
Power supply | Power adapter type: switching power adapter |
Input rated voltage：110V～240V，50/60Hz | |
Input voltage fluctuation range： ±20％/ ±10％ | |
Safety wire：Install non renewable temperature protection at the input port.（or temperature resistance） | |
power: maximun10W | |
Certification requirements： CCC , CE certification or customer designated certification. |
Order information
Model | Description |
FY-E004PP |
Industrial 4 ports POE ONU EPON
|
