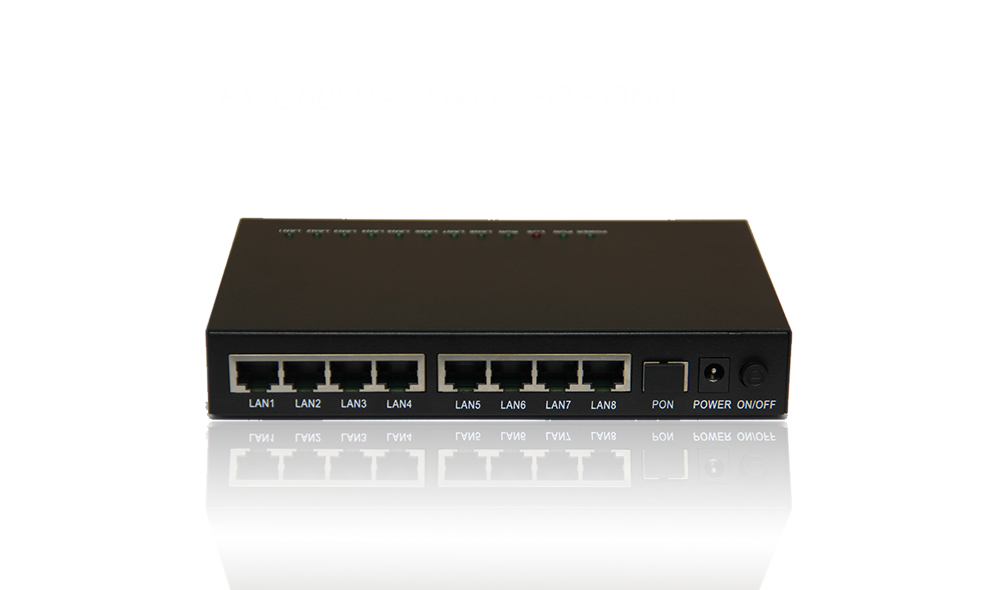

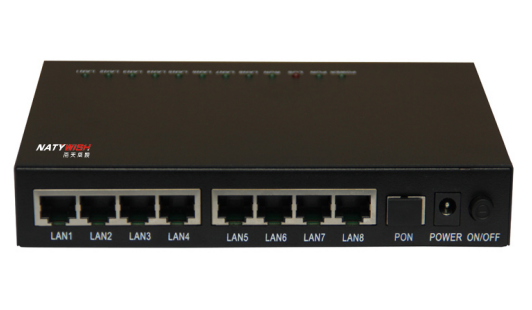

8 ports industrial POE GEPON ONU ---- FY-E008P
Product Overview
FY-E008P series is a digital POE ONU, designed by flypon,provides one 1.25G PON port,8*10/100Mbps self-adaptation POE ethernet ports ,support IEEE802.3af15.4W and IEEE802.3at30W power supply standard.It can automatically identify the electrical equipment and provide power, meet the IEEE802.3af/at standard .For the connected equipment that non electricity,it would automatically stop the power supply.It can be connected to the network camera, IP telephone and wireless AP network equipment and supply power and cooperate well with center OLT.It can achieve remote fault diagnosis and location ,reduce maintenance workload,Iron shell design,applicable to FTTB/FTTH and other application environments.
Product Feature:
1. Meet IEEE802.3/802.3ah standard.
2.Automatic discovery and registration.
3.Support DBA and all kinds of SLA .
4.Support IEEE802.1DRSTP.
5.Support IGMPSnoopingV2 multicast.
6.EMI and ESD protection certification.
7.Support VLAN.
8.SNTP client side automatic time synchronization.
9.Rich and powerful OAM with remote management capabilities.
10.Support port speed limit, loop detection and port isolation.
11.Support state detection and automatic fault location.
12.Support power-off alarm.
13.Each PoE power supply port can automatically identify whether or not a power supply is connected to a standard receiving device to power or power it off.
14.Support IEEE802.3af15.4W and IEEE802.3at30W standard.
Technical Parameter
Model |
FY-E008P |
Ethernet LAN port | 8*10/100M BASE-T RJ45 ports (self adaptation). |
PON port |
1 *1.25G PON port,uplink and downlink symmetric, 1Gbps transmission rate. |
Wavelength |
1310nm（TX）/1490nm（RX）. |
Optical power |
-1~+4dBm. |
Rx sensitivity |
-25dBm. |
Distance |
20km. |
Buffer space |
1.25MB. |
MTBF |
100000 hours. |
PON interface |
SC/PC |
EPON characteristic |
Support IEEE802.3ah standard |
Support DBA | |
Support ONU automatic discovery and registration（plug and play） | |
Standard |
Support IEEE802.3、IEEE802.3u |
IGMPSnoopingV2 | |
Support IEEE802.1QVLAN | |
Support IEEE802.1PQoS | |
PoE |
Power supply port:：8 |
Standard and power ：IEEE802.3af15.4W，IEEE802.3at30W | |
Working mode：automatic identification of power supply equipment,automatic power supply, power interruption. | |
WEB management |
Cooperate with center OLT，complete ONU management,configuration and software upgrades. |
Power supply |
DC48V（external） |
Power consumption |
4W |
Working temperature |
-10～55℃ |
Storage temperature |
-40～70℃ |
Humidity |
5%～90% non-condensing |
Size |
26mm(H)×109mm(W)×152mm(D) |
Order information
Model | Description |
FY-E008P |
8 ports industrial POE ONU
|
