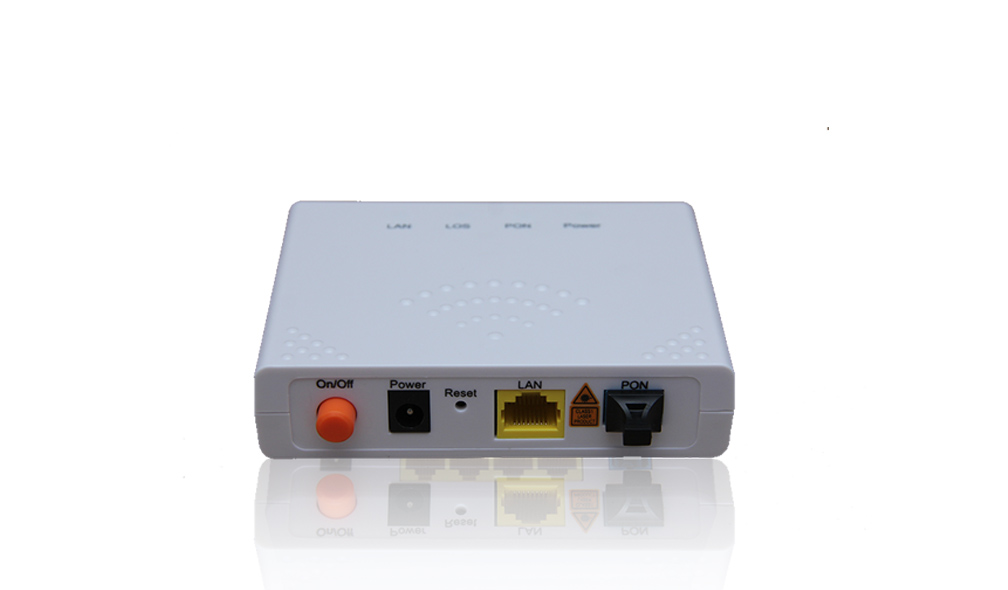

1 GE XPON ONU
EL1GET serials 1GE XPON ONU ,which is a multiple functions ONU, XPON/EPON /GPON can self adaptation,in order to meet the needs of telecom operators, FTTO (Office),FTTB(Building), FTTD(Desk) broadband speed increase,SOHO broadband access,it adopts mature,stable and cost-effective XPON technology.High reliability,easy to manage,flexible configuration and good quality of service (QoS) guarantee.It has the function of NAT and firewall and so on.The technical performance of the product meets the requirements of IEEE802.3ah and ITU-TG.984.x standard.
Product Feature:
1.Plug and play, auto discovery, configuration and upgrade.
2.Support OAM remote configuration management function.
3.Optical port has the function of optical power detection,optical transmission cut off etc.
4.Provide fail alarm interrupt signal.
5.High speed forwarding: : 900 Mbit/ /s s forwarding in the NAT scenario.
6.IPv6 6 Capability:support IPv6 6/ / IPv4 4 dual stack and DS - Lite.
7.It can interflow well with Broadcom, PMC,Cortina and other OLT equpment .
Technical parameter
SPCIFICATION | DESCRIPTION |
Model number | EL1GET |
Profuct name | 1GE XPON ONU |
Color | White |
Shell material | Plastic |
Interface protocol | FE, GE, STM -1, STM -4, STM-16 |
Firmware | English version |
Application | FTTH/ / FTTB/ FTTN/FTTX |
Button | Reset , power |
PON port | 1 XPON port: GPON/ / EPON/ / XPON interface, SC,single mode,single fiber Downstream rate 2 .5 Gbps Upstream rate 1. 25 Gbps |
Wavelength | Wavelength:Tx 1310nmRx1490nm |
Optical connector | SC/UPC |
RX sensitivity | >- 28 dBm (1490nm) |
LAN port | 1* 10/ 100/ 1000 Mbps adaptive ethernet ports , full / half duplex, RJ 45 interface. |
TEL port | 1Voice port, support H 248/ / Sip Voice protocol. |
Indicator light | Use to indicate the situation of power supply,PON port , voice port and network port |
Power supply | 12V,0.5 A , external AC- - DC power adapter |
Working environment | Working temperature：-5～+55℃，working humidity：10～90%（non-condensing） |
Storage environment | Storage temperature：-30～+60℃，storage humidity：10～90%（non-condensing） |
Weight | 120g |
Size | 200*90*35mm |
HGU/ / SFU | Support |
PPPOE | Support |
Bridge | Support |
Router | Support |
Firmware | English |
remote diagnosis | Support |
Web page upgrade | Support |
TR 069 | Support |
telnet | Support |

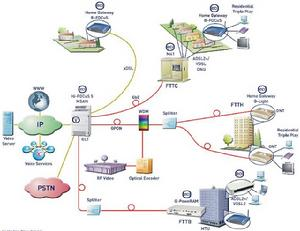

Application solution
Order information
Model | Description |
EL1GET | 1GE XPON ONU |
