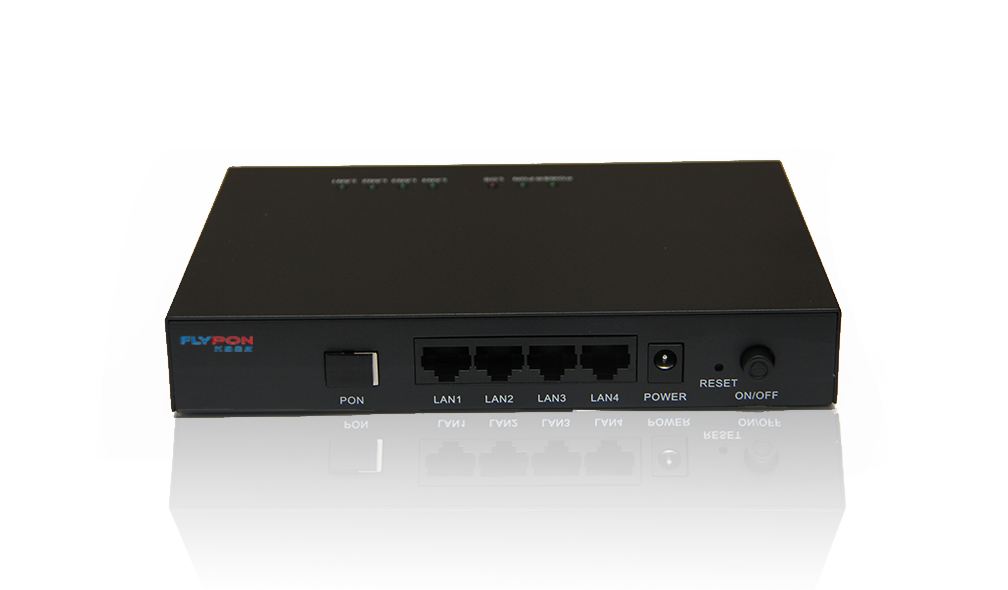

Commercial Gigabit 4 ports EPON ONU
----FY-E004GM
ONE uplink EPON port ,four 10/100/1000M LAN ports ,metal shell
Product Overview:
FY-E004GM ONU series is an industrial passive optical network transmission product designs by flypon,which is a terminal device, in order to meet the needs
of telecom operator,SOHO,broadband access,broadband speed increase,FTTH/
FTTO,it adopts mature,stable and cost effective gigabit EPON technology. 2/3 layer
Ethernet switch technology,high reliability,easy to manage, flexible configuration and good quality of service(QoS) guarantee.The technology performance of product meets the requirement of IEEE802.3ah standard .
Product Advantage:
1. Support uplink and downlink symmetric,PON transmission rate 1Gbps, high efficient bandwidth utilization and the ability of ethernet support provide user reliable service guarantee.
2. Support mixed network with mainstream manufacturer OLT,minimizing the cost of building network.
3. Adopt advance technology in the industry,have strong function and QoS guarantee on ethernet services,support SLA and DBA.
4. Desktop devices take up small space and consume less power.
Product Feature:
1.Adopt point to multi point network topology, effectively collect and gather users' dispersed Ethernet Services,provides 4*10/100/1000M RJ45 fast ethernet ports,smooth interconnection with existing networks
2.Dynamic bandwidth allocation mechanism enables all users to share the bandwidth of 1Gbps more reasonably,achieve reliable QoS guarantee,ensure the quality of service of different services in the same network.
3.Support IGMP multicast and make effective use of broadband.
4.Support port isolation.
5.Support Ethernet loop detection, automatic judging devices whether there is an Ethernet loop blocking on the network.When the loop is disappearing, it can automatically recover.
6.Support multicast VLAN.
7.Support remote loop back, remote diagnosis network state.
8.The rich OAM function design includes configuration, alarm, performance monitoring, fault isolation and security management. It not only provides remote management through OLT, but also supports local console management.
9.Support the authority certification test of the Ministry of public security.
10.FC,CE,ROHS authentication.
11.Support network management,metal shell.
Technical parameter
Model | FY-E004GM
|
User side interface | 4*10/100/1000M BASE-T fast ethernet RJ45 ports (self adaption). |
PON port | Uplink and downlink symmetric,transmission rate:1Gbps. Network coverage radius : 20km. Optical interface type：SC/PC. Highly sensitive optical receiver: ≧-30dBm. Luminous power：2-7dBm . Security: ONU authentication mechanism. |
Standards to be followed | IEEE 802.3ah. (YD/T 1475-2006）. IEEE 802.1D, Spanning Tree. IEEE 802.1Q, VLAN. IEEE 802.1w, RSTP. Ethernet – II, Ethernet-SNAP. |
VLAN | Port base VLAN. IEEE 802.1Q VLAN |
Quality of service(QoS) | Backpressure flow control (half duplex). IEEE 802.3x,flow control (full duplex). Prevent Head Of Line mechanism. IEEE p802.1p, CoS 4 transmission queues per port mapped 8 priorities for 802.1p WR, SP and FIFO queuing scheduling algorithms. Line rate . |
Reliability | UDLD（Single directional link detection protocol to prevent survival tree loop） Support Dying-Gasp function. |
Network security | IEEE 802.1x:Port Based Network Access Control.Support local and remote authentication, EAP end or transmission. CHAP，EAP authentication. Limit the maximum number of users per port. Port protection. Message storm control. |
Management configuration | CLI, Web, SNMP, TELNET multiple management methods. Software upgrades can be carried out through TFTP and FTP. Local or server syslog log system log. ping, trace route network testing tools. |
Dimension | 125*175*28mm. |
Installation : plug and play. | |
Heat dissipation | For a long time (24 hours)to use, the heating of the equipment will not cause the deterioration of the performance and the deformation and damage of the device. |
Environment requirement | Working environment：-55℃～75℃；5%～95% non-condensing. |
Storage environment：-60℃～80℃；5%～95% non-condensing. | |
Power supply | Power adapter type: switch power adapter. |
Input voltage rating：110V～240V，50/60Hz. | |
The range of input voltage fluctuation: International + 10%. | |
Fuse: install an inrecoverable temperature insurance (or temperature resistance) at the input end. | |
Power consumption : ≦ 3W. | |
Certification requirements: domestic CCC certification, international CE certification or customer designated certification. |
Order information
Model | Description |
FY-E004GM
| l 4 ports ONU EPON
|
